FTTH fiber Project Simplex Core 4108M Fusion Splicer Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | FOCABLE |
| Certification: | RoHS Compliant, ISO Certificate |
| Model Number: | Fusion Splicer 4108M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PCS |
|---|---|
| Packaging Details: | 1PCS/BOX |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 5000PCS/MONTH |
|
Detail Information |
|||
| Material: | Quartz Series | Core Quantity: | Simplex |
|---|---|---|---|
| Fiber Type: | SM, MM, DS, NZDS | Splicing Loss: | 0.02dB(SM)，0.01dB(MM)，0.04dB(DS) |
| Applicable Fiber: | Cable Indoor And 0.25mm,0.9mm Fiber, SC Connector(option) | ||
| Highlight: | quartz series fusion splicing machine,0.02dB fusion splicing equipment |
||
Product Description

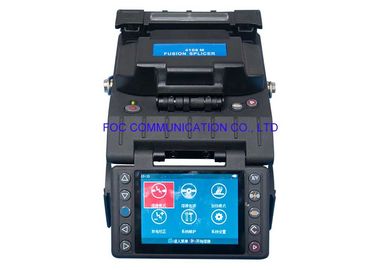

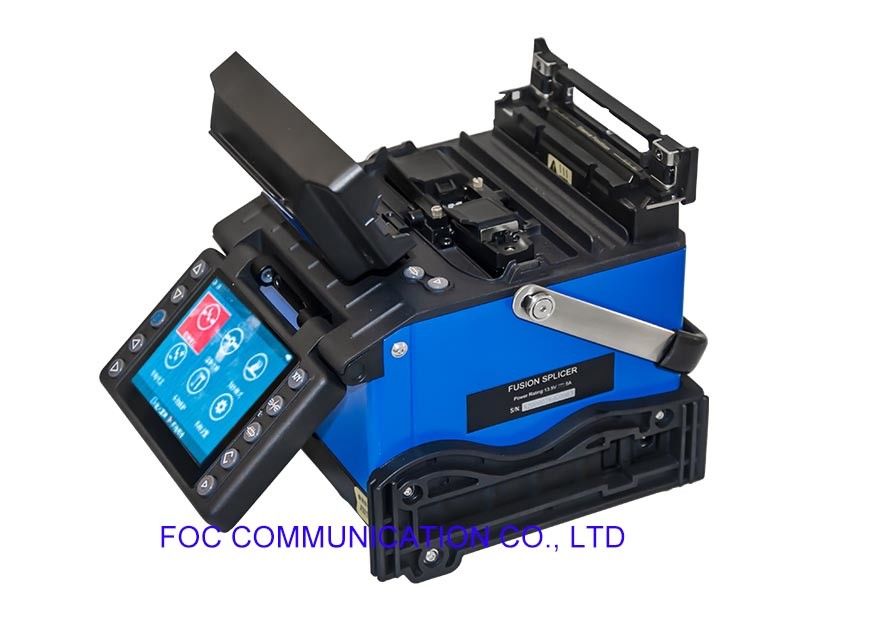

Fusion Splicer 4108M Reliable Splicing Machine Used for FTTH fiber Project
General information
Fusion Splicer 4108M, with high performance price ratio, with smart appearance, reliable quality, 4108M is a special design for the installation, operation and maintenance of optical fiber specially designe a precision, durable, convenient optical fiber construction instrument. Widely used in the construction, inspection, maintenance of fiber cable.
Key Features
- Used for FTTH and ordinary fiber project
- Core to core alignment by PAS technology
- 9 sec splicing time and 30 sec heat time
- 300 X or Y view, 200 X and Y view
- 3.5 inch digital high-quality LCD screen, observe X and Y view at same time
- Three in one fixture, splicing single fiber, cable indoor and pig tail
- Built in large capacity lithium battery of 200 times splicing and heating
- Small size and light weight, 1.5KG including battery
Applications
- Maintenance in Telecom
- Maintenance CATV
- Fiber Optic Lab Testing
- Other Fiber Optic Measurements
Technical Specifications
| Applicable fibers | SM MM DS NZDS |
| Fiber diameter | Cladding diameter:80-150μm; Coating diameter:100-1000μm |
| Fiber count | Single |
| Fiber cleaved length | 8-16mm (Coating diameter:250μm) |
| Actual average splice loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS) |
| Typical splicing time | Typical 9 sec (standard SM fiber) |
| Return loss | ＞60dB |
| Splicing mode | Auto Calibrate Normal Special |
| Fiber aligning method | Meticulous,Core,Clad,Manual |
| Splicing program | 53 (factory mode), 100(user mode) |
| Tube heating program | 9 (factory mode), 40(user mode) |
| Tube typical heating time | Typical 16～25 sec |
| Protection sleeve length | 60mm, 40mm |
| Storage of splice result | 10000 results, 24parameter per result , 100 set of images |
| Fiber image magnification | 120X (X or Y view),60X (X and Y view) |
| Battery capacity | Typical 300 cycles (splice/tube heat with inner Li-battery ) |
| Monitor | 3.5 inch color LCD monitor |
| Tension test | 2N |
| Electrode life | 2500 |
| Terminal | USB |
| Power supply | AC 100-240V with AC adapter DC13.5V Inner Li-battery (5200mAH) |
| Operating condition | 0-5000m above sea level, -10-50℃ Max wind velocity of 15m/s |
| Dimension | 122mm(L)×148mm(W)×130mm(H) |
| Weight | 1.4Kg excluding battery 1.7Kg including battery |
Standard Configuration of Fusion Splicer 4108M
| No | Name | Qty |
| 1 | Fusion Splice | 1 set |
| 2 | Fiber Cleaver | 1 set |
| 3 | Fiber Stripper | 1 pc |
| 4 | AC Adaptor | 1 pc |
| 5 | Power cord | 1 pc |
| 6 | Li Battery | 1 pc |
| 7 | Charger | 1 pair |
| 8 | Cooling tray | 1 pc |
| 9 | Spare Electrodes | 2 pair |
| 10 | User Manual CD | 1 pc |
